Ozone generator for laboratory use, from 4 to 8 gO3/h

Ozone generator for laboratory use, from 4 to 8 gO3/h

Model: GEO4

Typical compressed air supply: 10 l / min (oil-free; 7 bar; 5 - 30 ° C)

Alternatively, PSA or LOX power supply: see PSA accessory card

Power supply: 220V - 50 HZ

Installed electrical power: 120 W

Dimensions (Dia. X Length): 330 x 150 X 280 mm

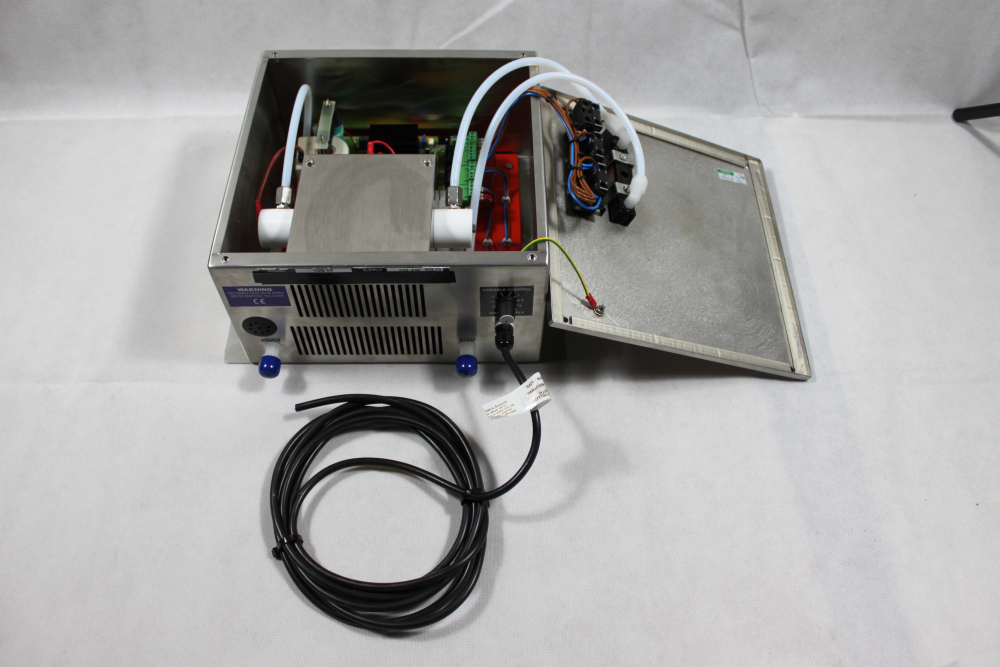

The generator includes:

• Supply gas flow meter,
• Supply and outlet gas pressure gauge
• High efficiency ceramic dielectric housed in a finned heat sink capable of reducing the temperature generated by ozone production
• Local potentiometer for the variation of the ozone concentration produced (range from 20% - 100% production)
• Air pre-treatment system consisting of 3 safety filters (where two are to remove any oil) and a membrane dryer to reduce the incoming humidity up to an extremely low dewpoint.
• CERTIFICATION OF CONFORMITY in accordance with EC directives: Machinery Directive 2006/42 / EC and EMC certification 2014/30 / EU
