Magnetic filter
€ 1020.00

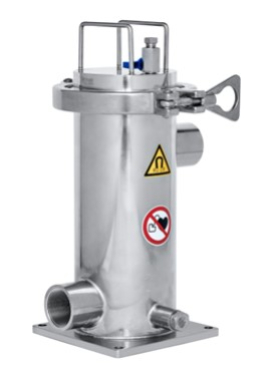

The Magnetic filter system FMF 240 removes particles from coolant, cutting oil, grinding oil and other process fluids.
The liquid is guided through the inlet into the magnetic filter. The liquid flows along the outside of the magnetic rod.
Ferritic dirt particles will be attracted by the magnetic filter rods and will stickon the surface of the rod. The clean liquid flows to the outlet into the main tank.
Max. flow (water based liquid)
70 l/min
Max. flow. (oil based liquid)
35 l/min
Max. pressure
15 bar
Connection
3/4" BSP
Dirt holding capacity
1.0 kg
Number of magnetic rods
1
Weight
4,5 kg
Dimensions
Height 306 mm
Bottom plate 110 mm x 110 mm
Weight: 4.50 kg
