ANALYST 160 IT Pilot plant

€ 3400.00

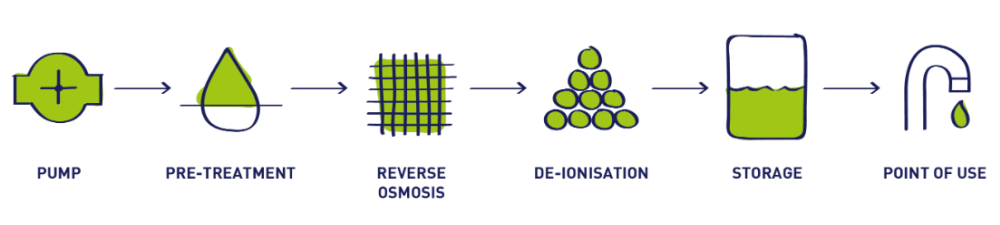

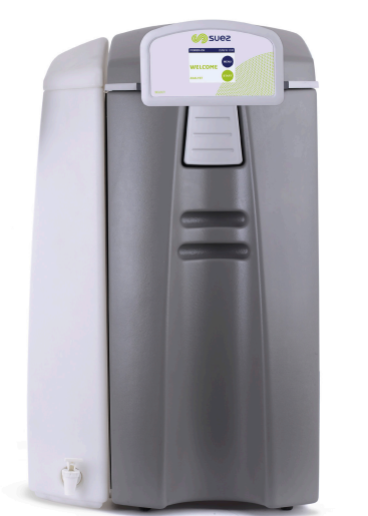

Analyst is a compact unit ideal for laboratory use, providing a constant supply of pure water > 1MΩ.cm for laboratory activity using carbon pretreatment, reverse osmosis and deionization.

Typical applications include glass rinsing, buffer solutions and dyes, media and reagent preparation. The apparatus has a standard internal tank of 20 liters but as an option are also available tanks of 50 and 100 liters.

This purification system is compact, durable, easy to use and easy to maintain.

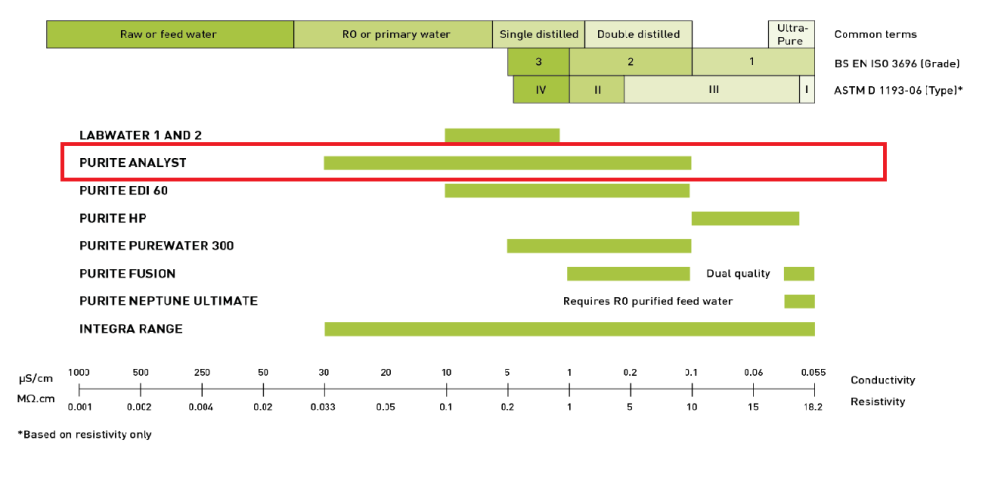

With this equipment it is possible to obtain water with the following purity levels:

HPLC grade of water

Deionized water

INSTALLATION REQUIREMENTS
POWER	SINGLE PHASE 110-230V, +/- 10%, 50/60 Hz
FEED	POTABLE WATER
MAXIMUM TDS (ppm)	1000
IDEAL INLET PRESSURE	2.1 – 6.2 bar (30-90 psi)
FEED WATER TEMPERATURE	1-35 C°
PRODUCT OUTPUTS
AT 10 C° (l/h)	14.4
AT 25 C° (l/h)	24
